Name: 5V 30A Single-Channel High-Power Relay Module
SKU: VE-191
Availability: InStock

5V 30A Single-Channel High-Power Relay Module

⚙️ Technical Specifications

Characteristic	Specification Parameters
Coil Operating Voltage	5V DC Stable
Active Working Current	~180 mA to 190 mA when coil is energized
Quiescent/Static Current	~5 mA baseline idle draw
Trigger Current Threshold	2 mA to 5 mA from microcontroller I/O pin
Max AC Switching Load	30A @ 250V AC (Normally Open contact)
Max DC Switching Load	30A @ 30V DC (Normally Open contact)

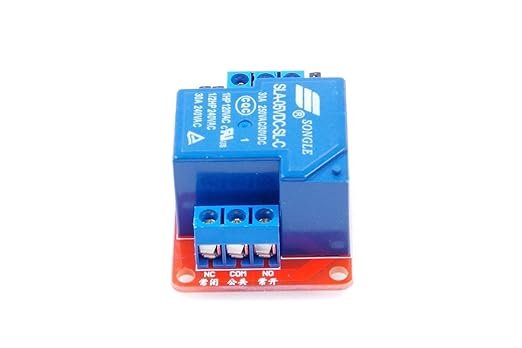

Output Terminals Config	NC (Normally Closed), COM (Common), NO (Normally Open)
Input Interface Pins	DC+ / VCC (+5V), DC- / GND (Ground), IN (Signal Input)

SKU: VE-191 Category: Relay

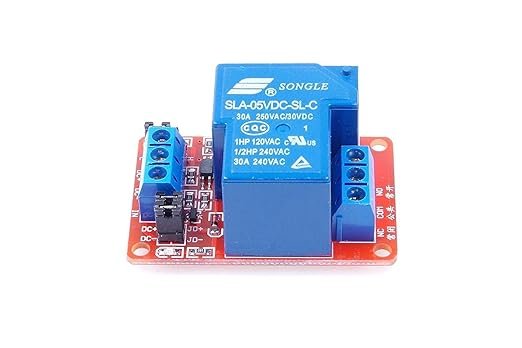

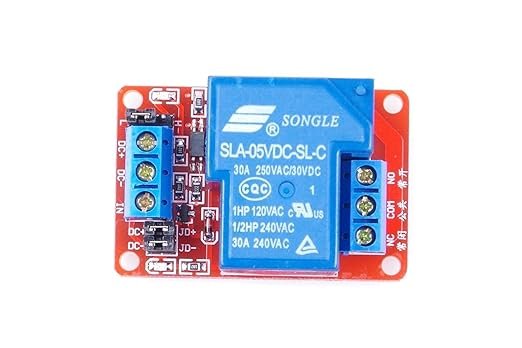

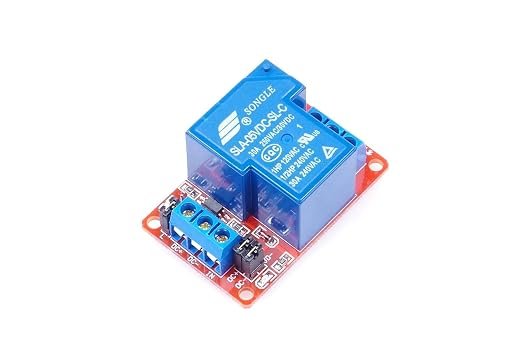

A 5V 30A Single-Channel Relay Module is a heavy-duty electronic switching board designed to let low-power microcontrollers (like Arduino, ESP32, or Raspberry Pi) safely control ultra-high-current appliances. Utilizing a massive, specialized SLA/T90-style power relay, it provides full galvanic isolation to bridge digital logic with massive electrical loads. It is widely used across India to automate heavy household and industrial appliances like geysers, air conditioners, water pumps, large heating elements, and high-power industrial motors.

✨ Key Features

High-Current SLA/T90 Form Factor: Features a massive mechanical block specifically built to handle up to 30 Amperes of continuous current without arcing or overheating.
Built-in Optocoupler Isolation: Equipped with a premium PC817 optocoupler chip that isolates the control signal using light, protecting your microcontroller from heavy inductive feedback spikes.
Configurable High/Low Logic Trigger: Features an onboard plastic jumper allowing users to freely switch the input trigger between High-Level (5V) and Low-Level (0V) logic tracking.

-10%

Click to enlarge

Back to products

Original price was: ₹200.00.Current price is: ₹180.00.

Characteristic	Specification Parameters
Coil Operating Voltage	5V DC Stable
Active Working Current	~180 mA to 190 mA when coil is energized
Quiescent/Static Current	~5 mA baseline idle draw
Trigger Current Threshold	2 mA to 5 mA from microcontroller I/O pin
Max AC Switching Load	30A @ 250V AC (Normally Open contact)
Max DC Switching Load	30A @ 30V DC (Normally Open contact)
Output Terminals Config	NC (Normally Closed), COM (Common), NO (Normally Open)
Input Interface Pins	DC+ / VCC (+5V), DC- / GND (Ground), IN (Signal Input)
