Home Power Supply & Adapters 12V 2A DC Power Adapter
9V 2A DC Power Adapter
9V 2A DC Power Adapter ₹250.00 Original price was: ₹250.00.₹200.00Current price is: ₹200.00.
Back to products
24V 2A DC Power Adapter
24V 2A DC Power Adapter ₹300.00 Original price was: ₹300.00.₹250.00Current price is: ₹250.00.

12V 2A DC Power Adapter

₹250.00 Original price was: ₹250.00.₹200.00Current price is: ₹200.00.

Technical Specifications

Characteristic  Specification Parameters
Input AC Voltage Range 100V AC to 240V AC (Standard Indian Single-Phase Mains)
Input AC Frequency 50 Hz / 60 Hz
Output DC Voltage 12V DC Fixed
Maximum Output Current 2.0 Amperes (2000 mA) Continuous
Total Rated Power Capacity 24 Watts Max
Connector Dimension Profile Standard 5.5 mm (Outer Diameter) × 2.1 mm (Inner Pin Diameter)
Connector Core Polarity Center-Positive (Inner sleeve (+), Outer ring (-))
Average Output Cable Length ~1.2 Meters to 1.5 Meters
Compare
Add to wishlist
SKU: VE-165 Category: Power Supply & Adapters
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

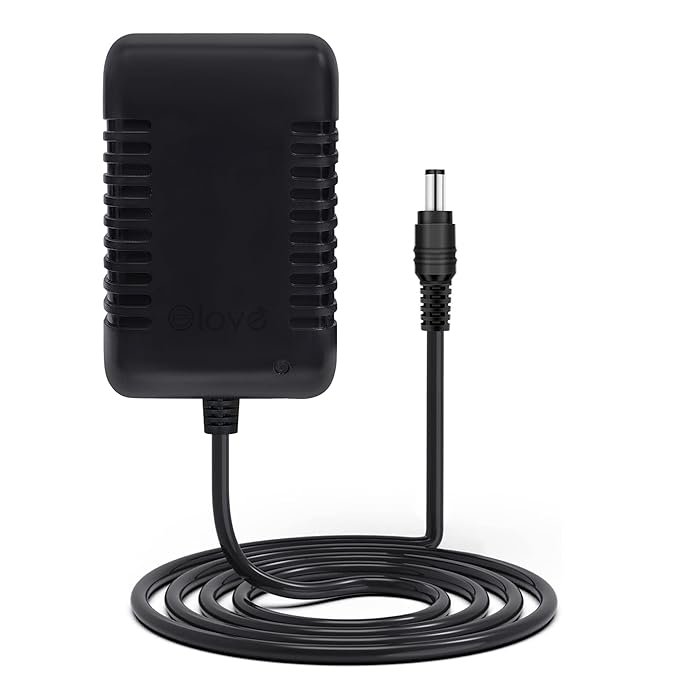

A 12V 2A DC Power Adapter is a high-capacity, regulated Switched-Mode Power Supply (SMPS) designed to convert high-voltage AC mains power into a stable, low-voltage 12V DC output. Capable of delivering a continuous current of up to 2 Amperes (24 Watts total power), it provides double the current headroom of a standard 1A adapter. This is the universal powerhouse adapter used across India for dual-band Wi-Fi routers, multi-camera CCTV DVR setups, LED strip lights (up to 2 meters), electronic door locks, LCD monitors, and high-torque DIY robotics projects.
✨ Key Features
  • High-Current Delivery: Supples up to 2000mA of continuous power, easily running devices with motorized parts or multiple active infrared sensors.
  • Stabilized SMPS Circuit Design: Utilizes pulse-width modulation (PWM) to maintain a highly stable 12V DC output, preventing device crashes or resets during AC mains voltage fluctuations.
  • Universal Domestic Input Safety: Handles wide input voltage swings (100V–240V AC) effortlessly, isolating your sensitive devices from unpredictable local grid surges.
  • Heavy-Duty Safety Protection: Equipped with integrated electronic trip-switches to instantly protect the adapter against output short-circuits, over-current spikes, and thermal overloads.
