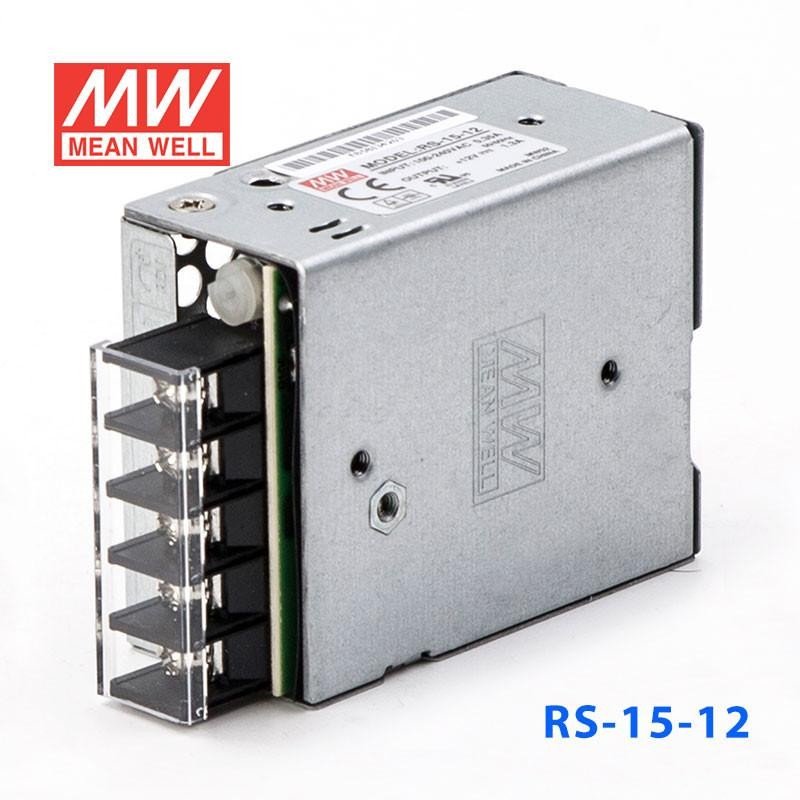

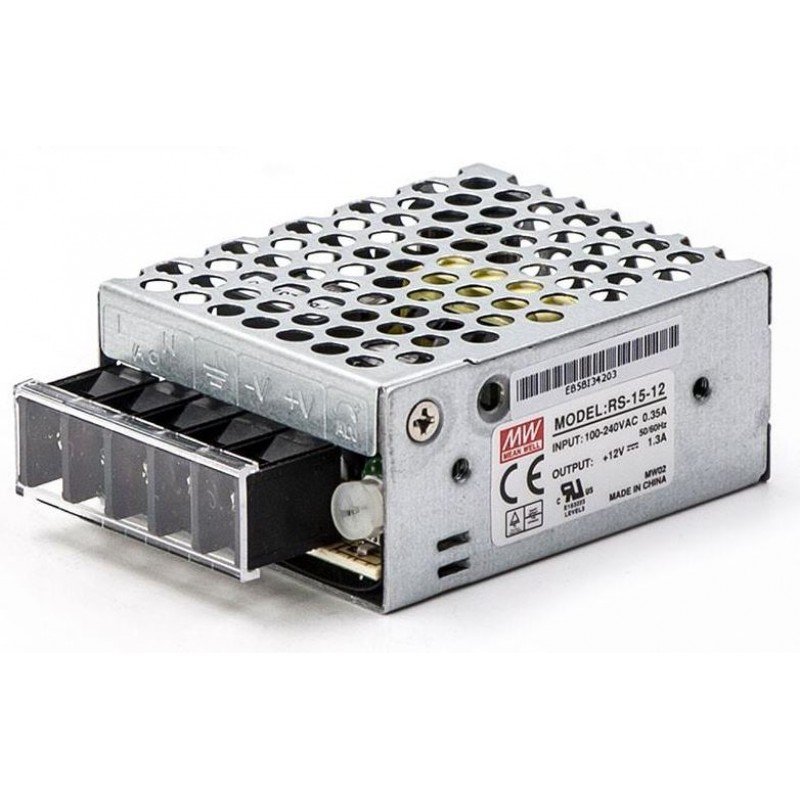

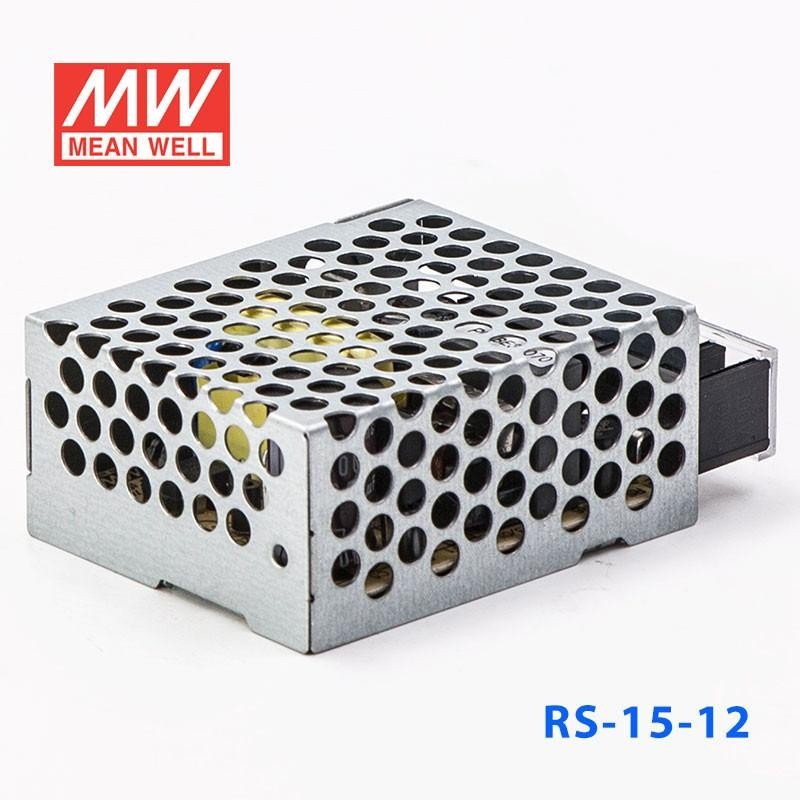

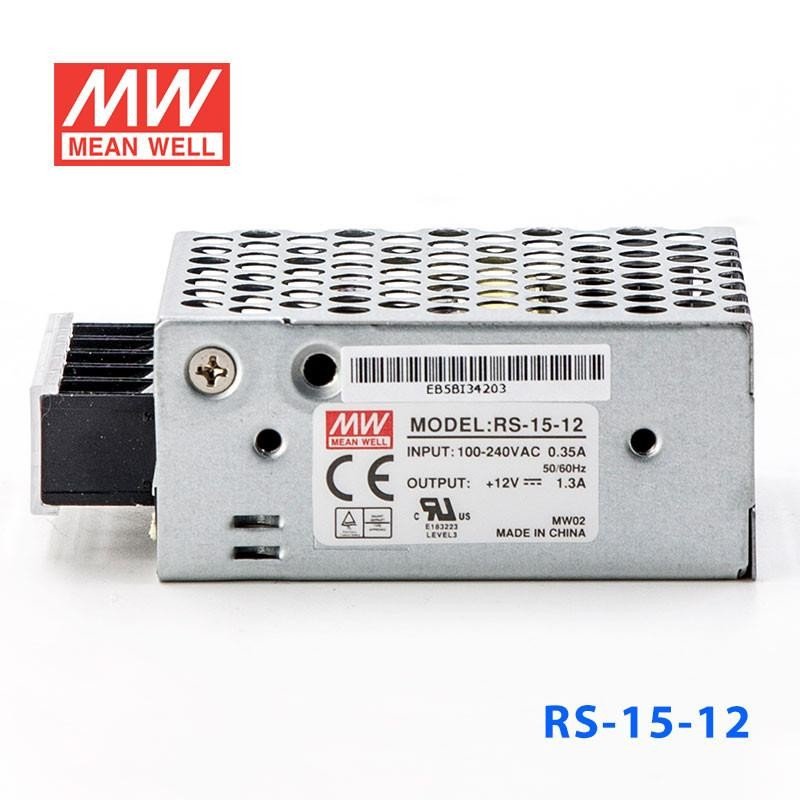

RS-15-12 Mean Well SMPS – 12V 1.3A – 15W Metal Power Supply

Key Specifications:-

• Output Voltage           12V
• Type                              Enclosed Type
• Approx. Wattage        15W
• Features                       Standard
• Series                            G3(Reliable)
• Mechanical Form       Enclosed
• Warranty                      3 Years Warranty
• IP Level                        Non-Waterproof
• Input Voltage             100-240V auto-select

Features:-

• No load power consumption <0.5W
• All using 105°C long life electrolytic capacitors
• Protections: Short circuit / Overload / Over voltage / Over Temp.
• Meet EMS EN50082-2/EN61000-6-2
• heavy industry level (35~150W)
• Withstand 300VAC surge input for 5 sec.
• High operating temperature up to 70°C
• Withstand 5G vibration test
• Miniature size, high power density
• High efficiency, long life and high reliability
• LED indicator for power on
• 100% full load burn-in test
• Suitable for critical applications
• 3 years warranty
