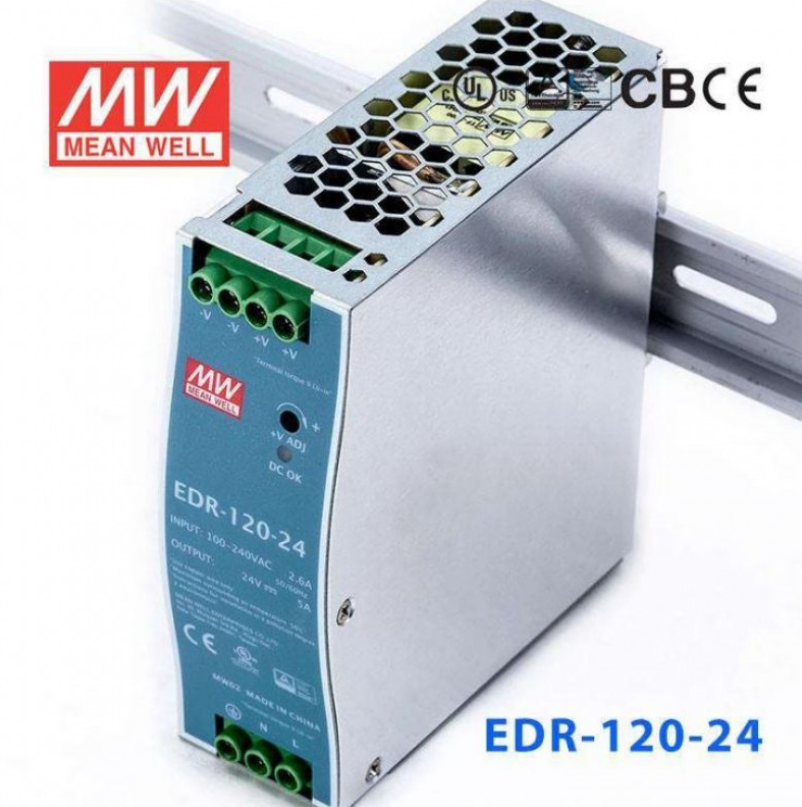

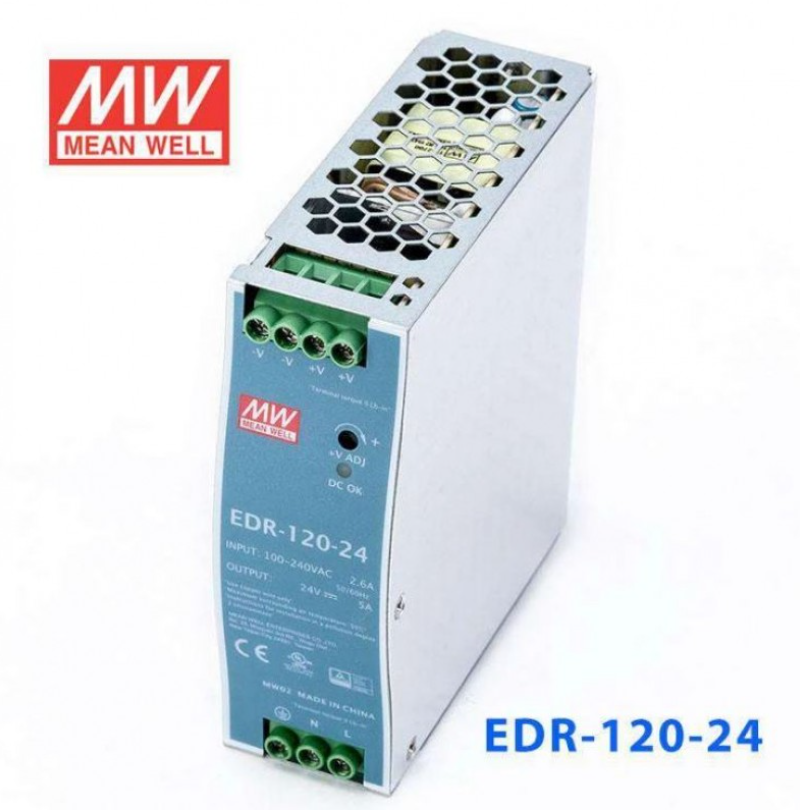

EDR-120-24 Mean well SMPS – 24V 5A 120W Din Rail Metal Power Supply

Key Specifications:-

• Output Voltage          24V
• Type                            DIN Rail Type
• Approx. Wattage      120W
• Features                     Standard
• Series                         EDR(Economical)
• Mechanical Form   DIN Rail
• Warranty                  2 Years Warranty
• IP Level                    Non-Waterproof
• Input Voltage          100-240V auto-select

Features:-

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Can be installed on DIN rail TS35 / 7.5 or 15
• UL508 (industrial control equipment) listed
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test
• Low cost
• 3 years warranty for NDR series
• 2 years warranty for EDR series
