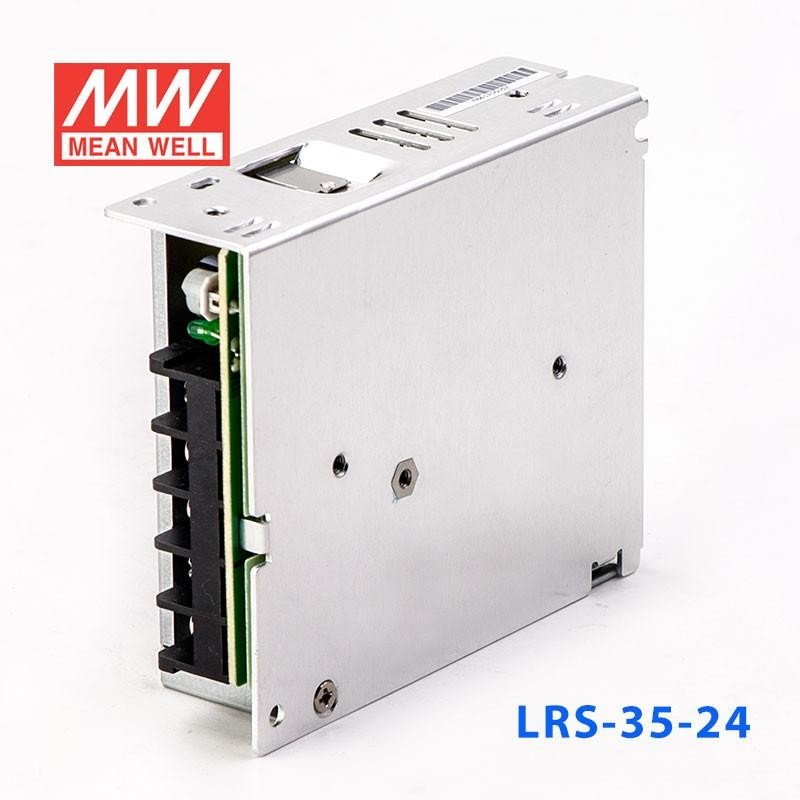

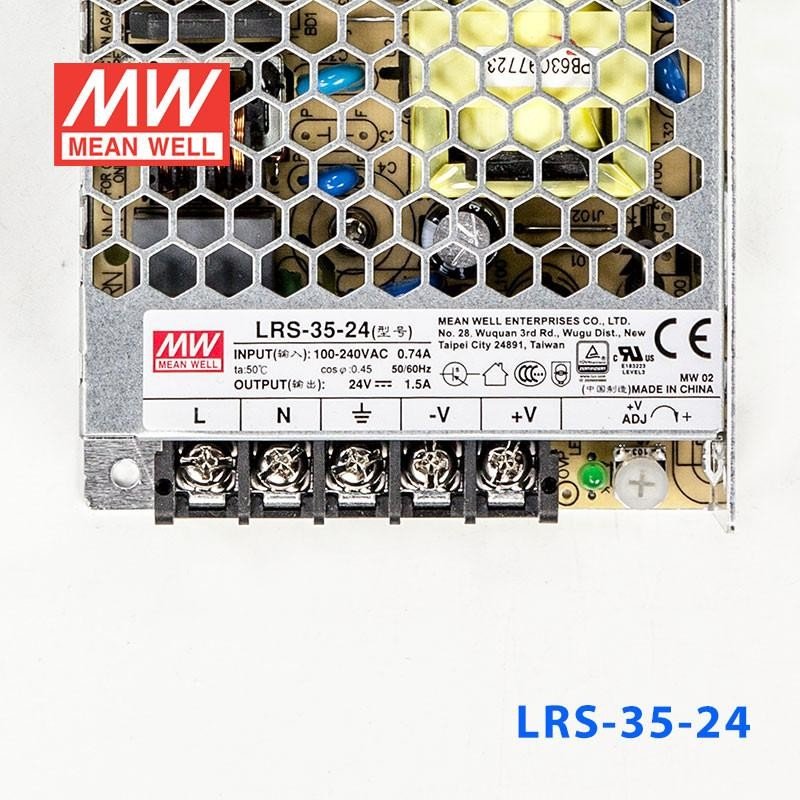

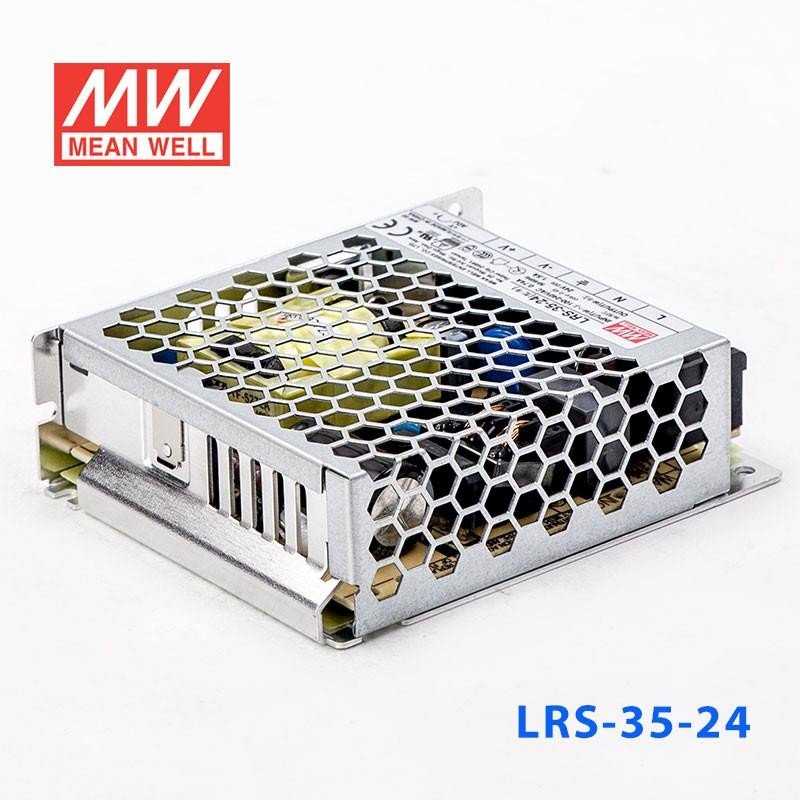

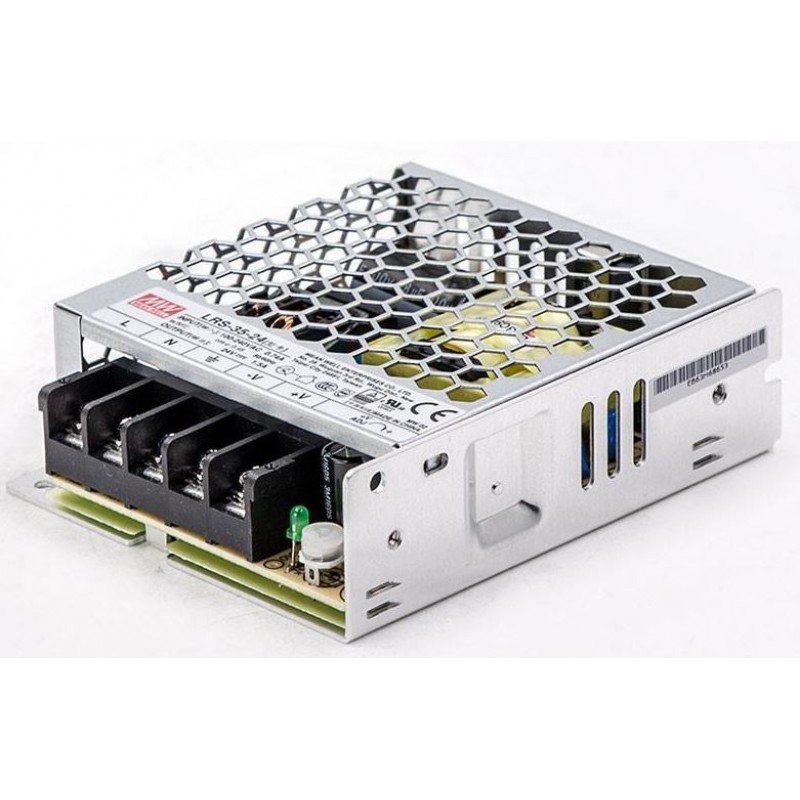

LRS-35-24 Mean Well SMPS – 24V 1.2A – 36W Metal Power Supply

Key Specifications:-

• Output Voltage           24V
• Type                             Enclosed Type
• Approx. Wattage       36W
• Features                      Standard
• Series                          LRS(Reliable)
• Mechanical Form    Enclosed
• Warranty                  3 Years Warranty
• IP Level                     Non-Waterproof
• Input Voltage          100-240V auto-select

Features:-

• No load power consumption <0.2W for 35W/50W;  <0.3W for 75W/100W
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Ultra compact and 1U low profile
• Withstand 5G vibration test
• High operating temperature up to 70oC
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
• Operating altitude up to 5000 meters
• High efficiency, long life and high reliability
• LED indicator for power on
• Low cost
• 3 years warranty
