TheHMC5883Lutilizes Honeywell’s Anisotropic Magnetoresistive (AMR) technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity.
These sensors solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earths magnetic fields, from milli-gauss to 8 gausses. Honeywells Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry.
Note:

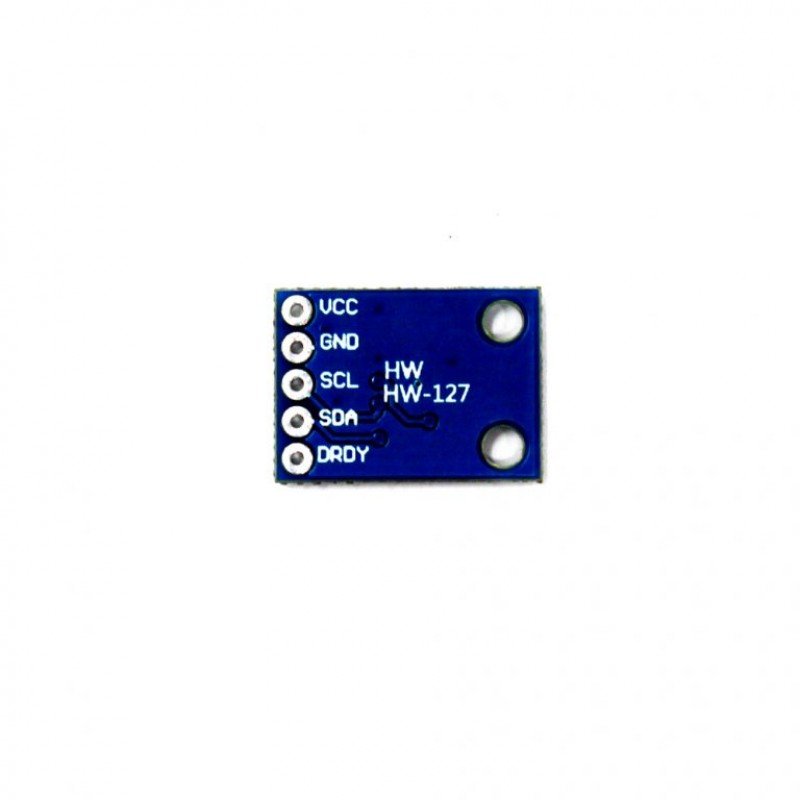

Sometimes markings on these boards vary slightly (e.g. Some may be labeled HW-127 instead of GY-273 even though they are otherwise identical).
Applications:
- Auto and personal navigation.
- UAV systems.
- Robotic navigation.
- Location-based services (LBS).
Features:
- 1-2 degree heading accuracy.
- A range of -8 to +8 Gauss.
- Communication: IIC communication protocol.
PackageIncludes:

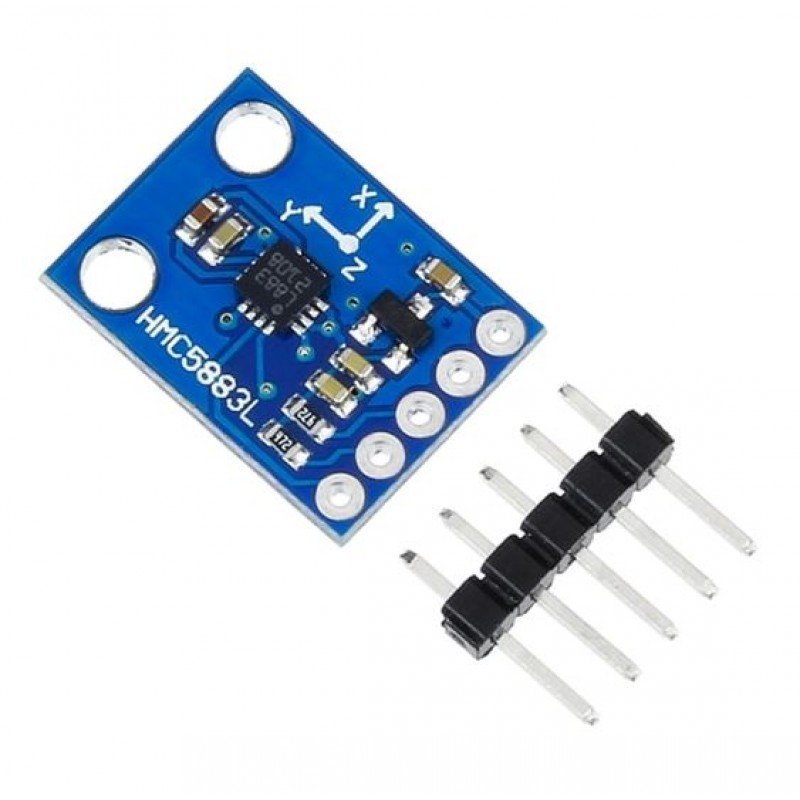

1 xGY-273 HMC5883L 3 Axis Module Magnetic Field Sensor.
Additional information
| Model | HMC5883L |
| Input Supply (V) | 3 5 VDC. |
| Communication Interface | IC (up to 400 kHz) |
| Operating temperature(C) | -30 ~ +85 |
| ADC | 12-bit |
| Data rate (Hz) | 160 |
| Length (mm) | 19 |
| Width (mm) | 14 |
| Height (mm) | 3 |
| Weight (gm) | 1 |
| Shipment Weight | 0.13 kg |
| Shipment Dimensions | 10 7 4 cm |
